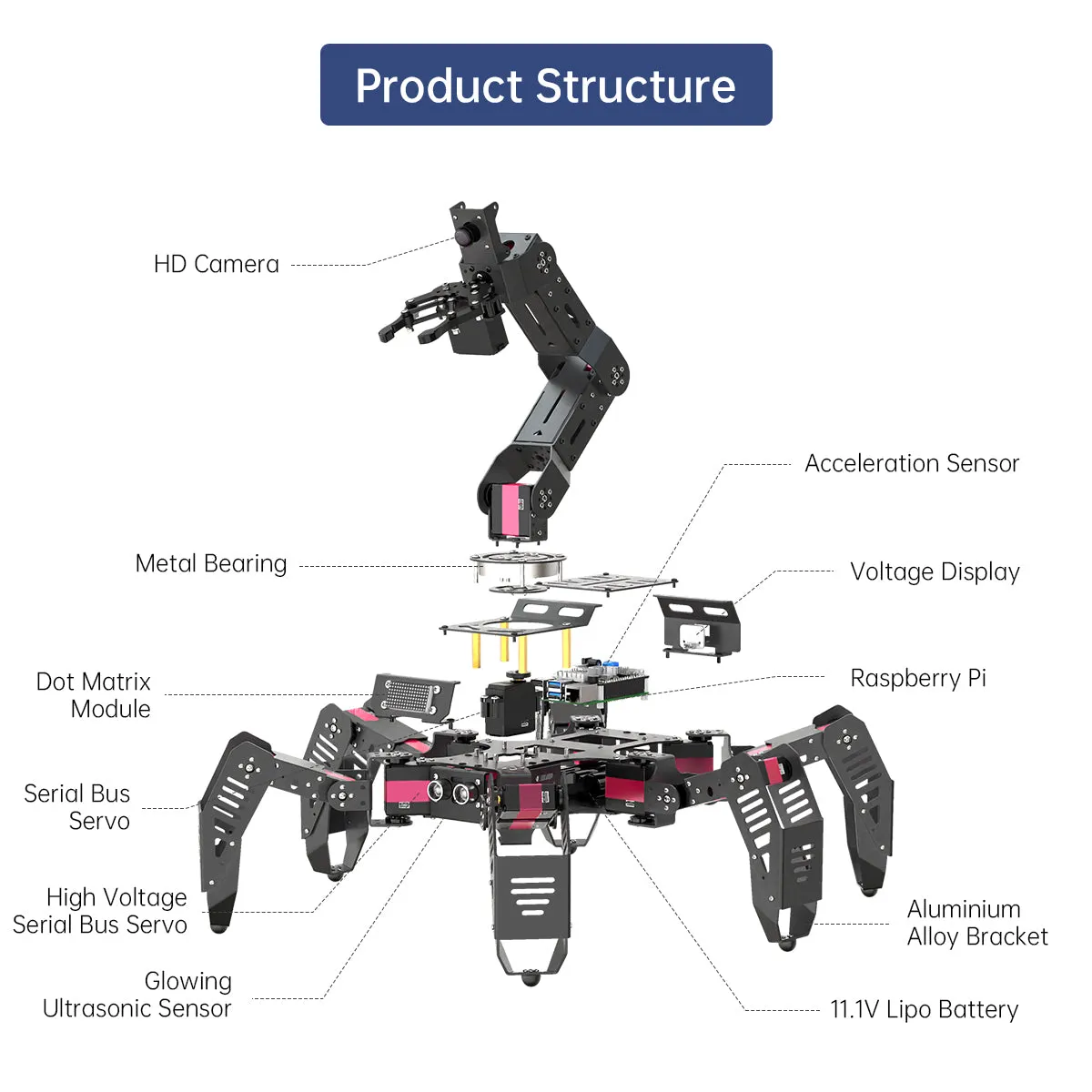

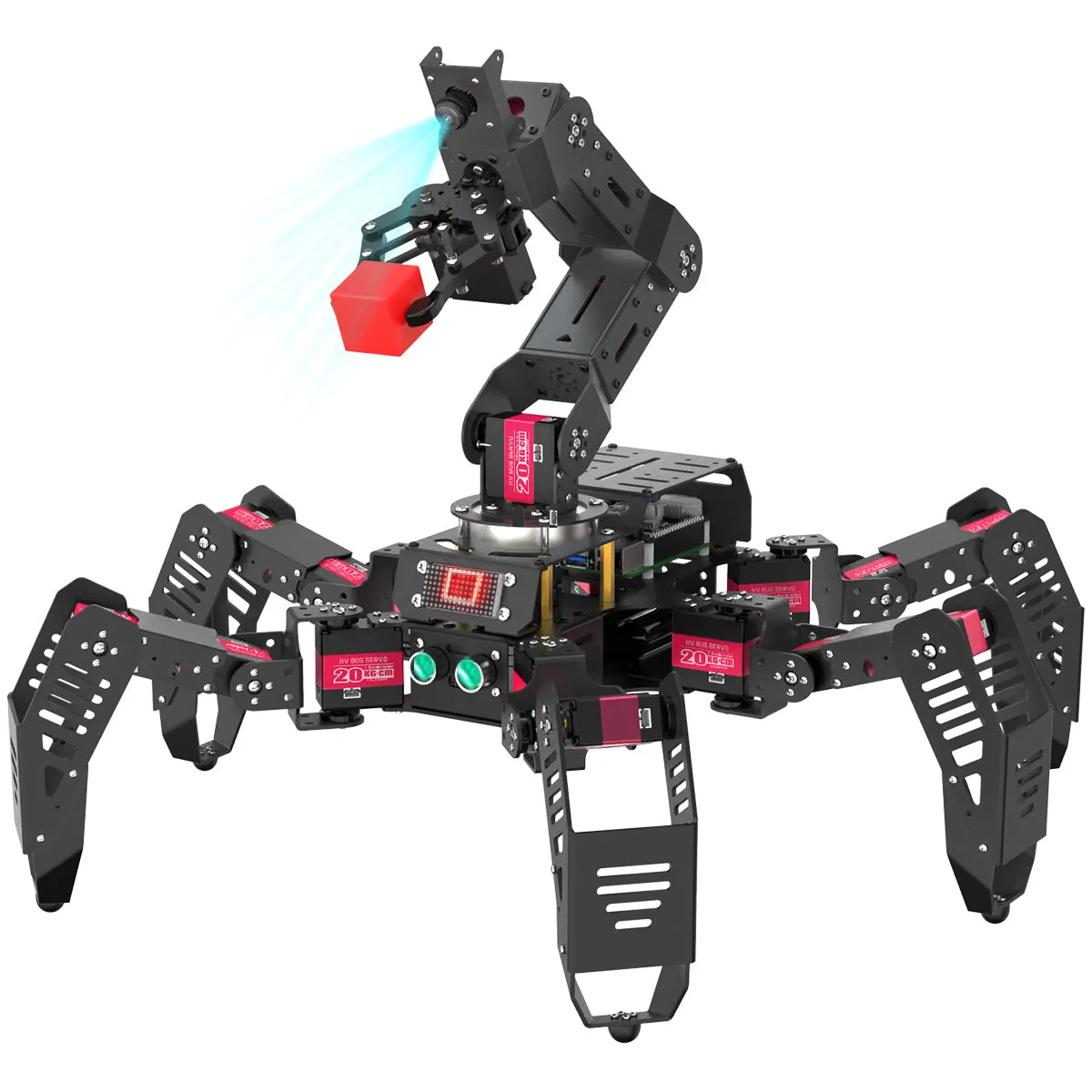

SpiderPi Pro is an advanced hexapod robot integrated with AI vision and powered by Raspberry Pi. It features intelligent serial bus servos with a torque of 20KG, 5DOF robot arm, glowy ultrasonic sensor, IMU sensor and dot matrix module and can be programmed using Python. SpiderPi Pro serves as an ideal platform for conducting research in motion control for hexapod robots, machine vision, OpenCV, deep learning, and various other fields.
SpiderPi Pro is an advanced hexapod robot integrated with AI vision and powered by Raspberry Pi. It features intelligent serial bus servos with a torque of 20KG, 5DOF robot arm, glowy ultrasonic sensor, IMU sensor and dot matrix module and can be programmed using Python. SpiderPi Pro serves as an ideal platform for conducting research in motion control for hexapod robots, machine vision, OpenCV, deep learning, and various other fields.

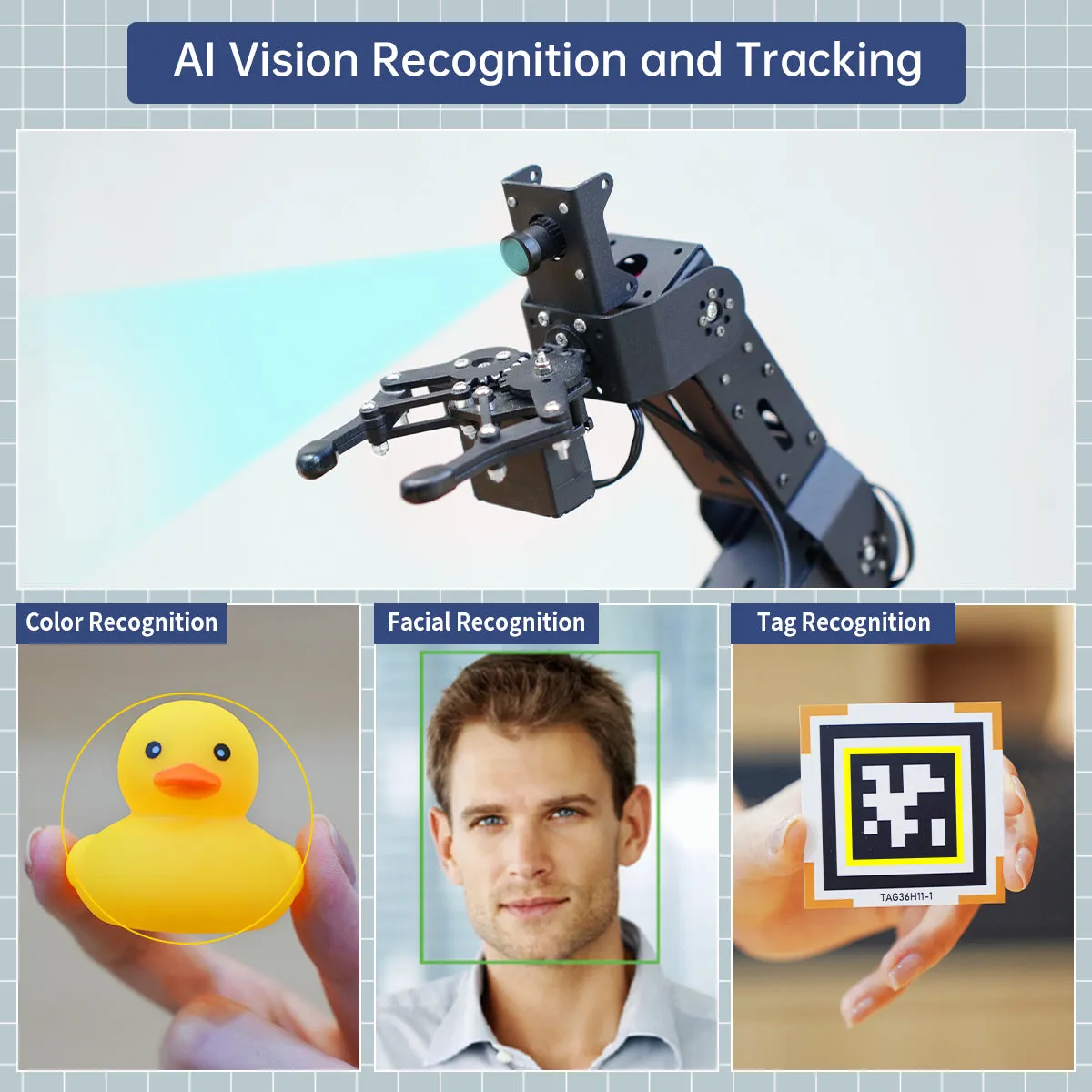

5DOF Vision Robot Arm
SpiderPi Pro is equipped with a HD wide-angle camera, which allows the robot's vision recognition range to be larger, and the camera supports manual focusing, which is more convenient to use.
Powered by Raspberry Pi

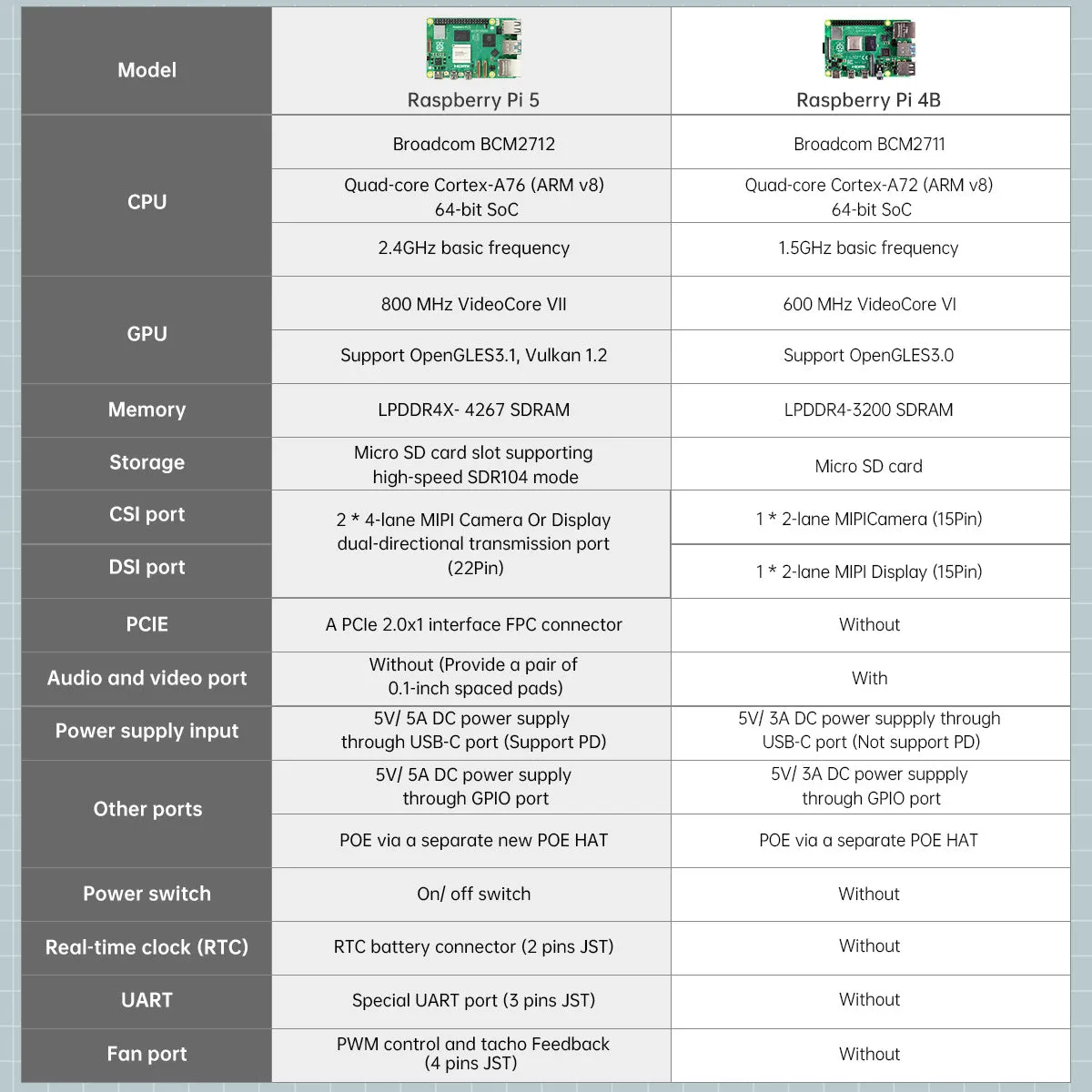

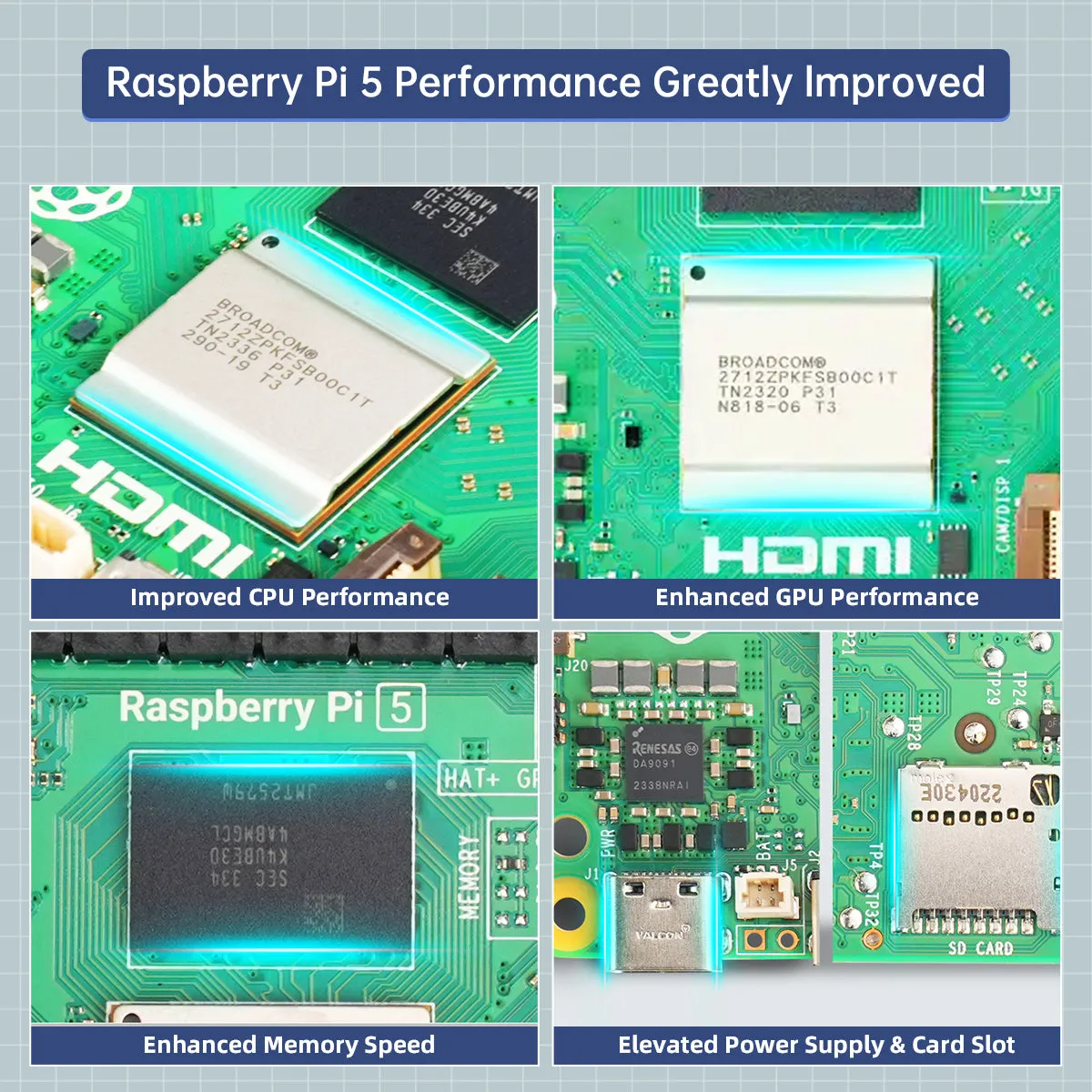

SpiderPi Pro is powered by a Raspberry Pi 4B/5 controller that adjusts the body attitude. At the same time, we provide rich course materials to let you quickly experience motion control, machine vision and OpenCV projects.

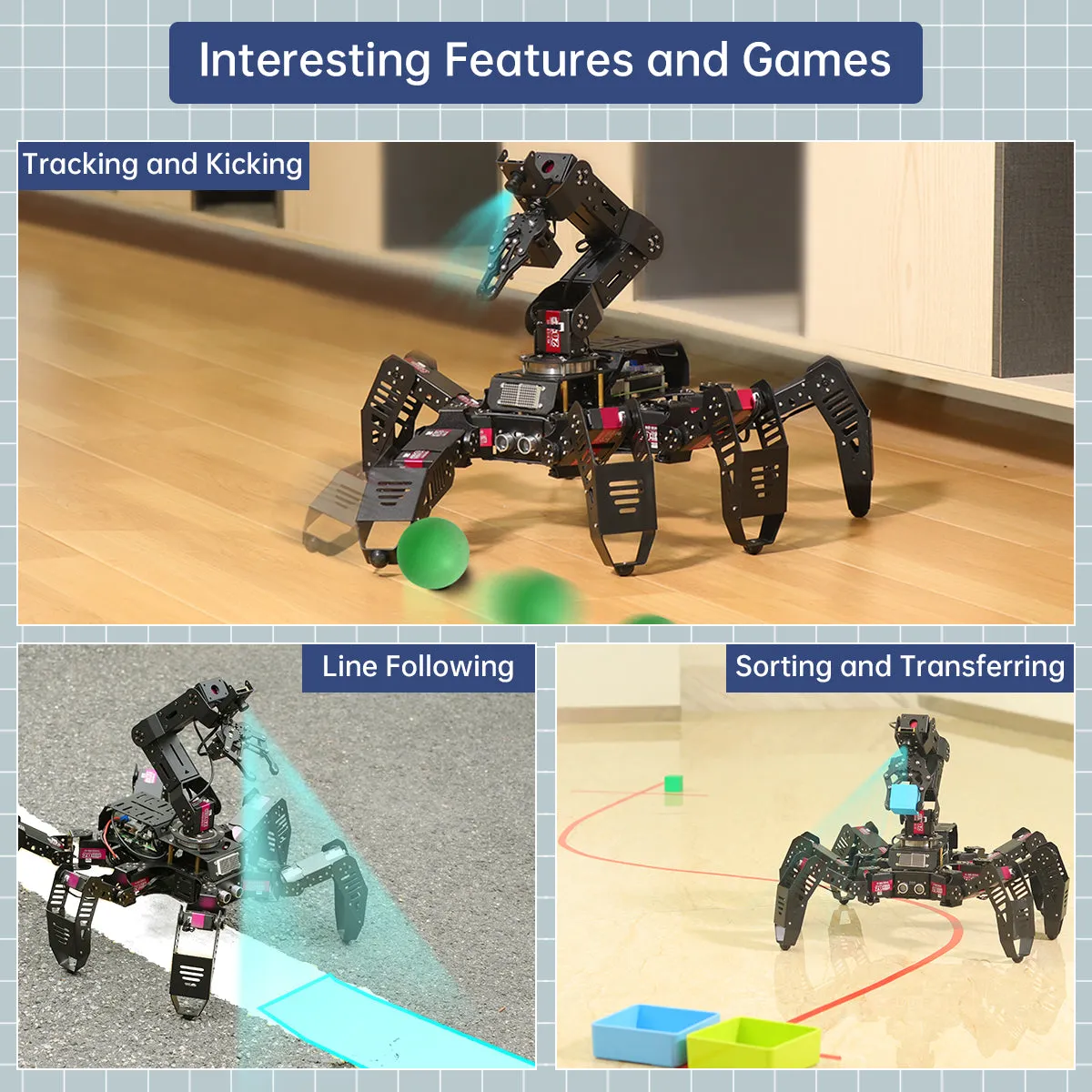

Sorting and Transferring
The position of different blocks can be recognized, and the distance can be judged. Through inverse kinematic algorithm, the robotic arm can pick the block, and then transfer it to the corresponding area independently.
Line Following
SpiderPi Pro can identify black, white, and red lines through OpenCV, and then calculate the position of the color, adjust the walking posture according to the different positions, and realize visual line following.
Tracking and Kicking
SpiderPi Pro not only can perform target tracking, but also calculate the relative position. Through inverse kinematic algorithm, it can switch gait automatically to kick the ball and block.
Shape Recognition
SpiderPi Pro can recognize the shape of different objects and display it through the LED dot matrix module.

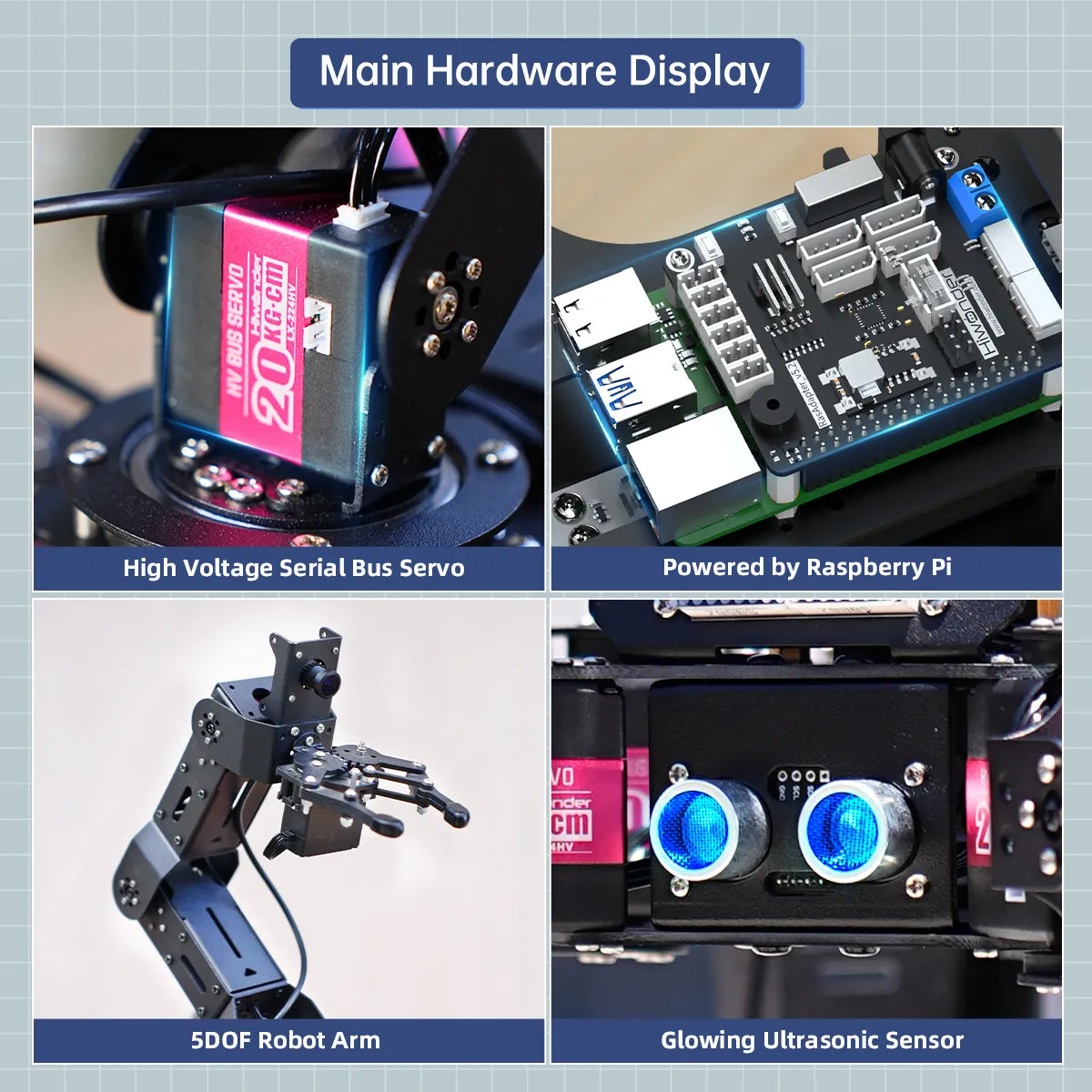

High Voltage Bus Servo
The 20kg.cm 11.1V high-voltage servo has longer service time and less power consumption.

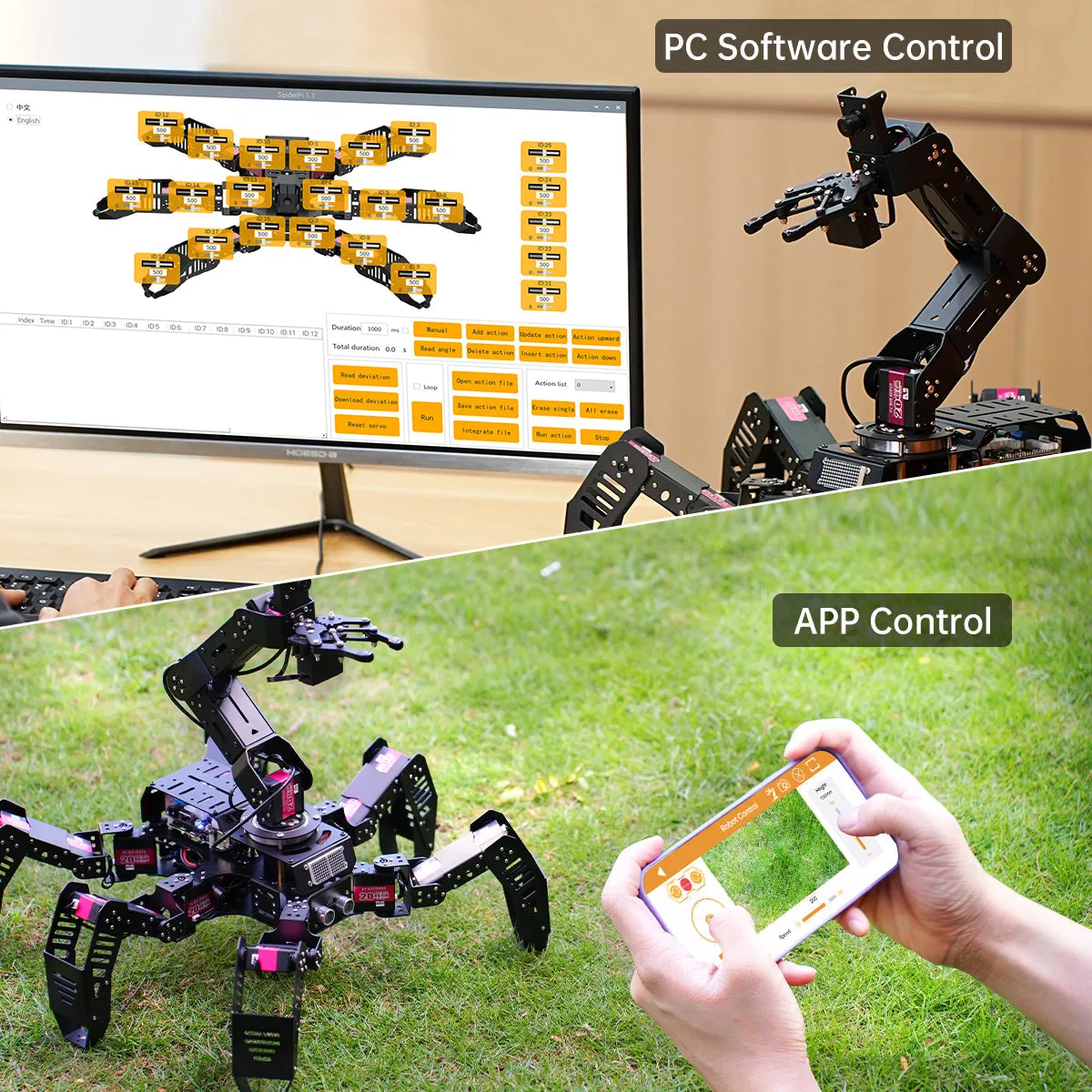

APP Control
WonderPi APP supports Android and iOS. Switch game modes easily and quickly to experience various AI games.

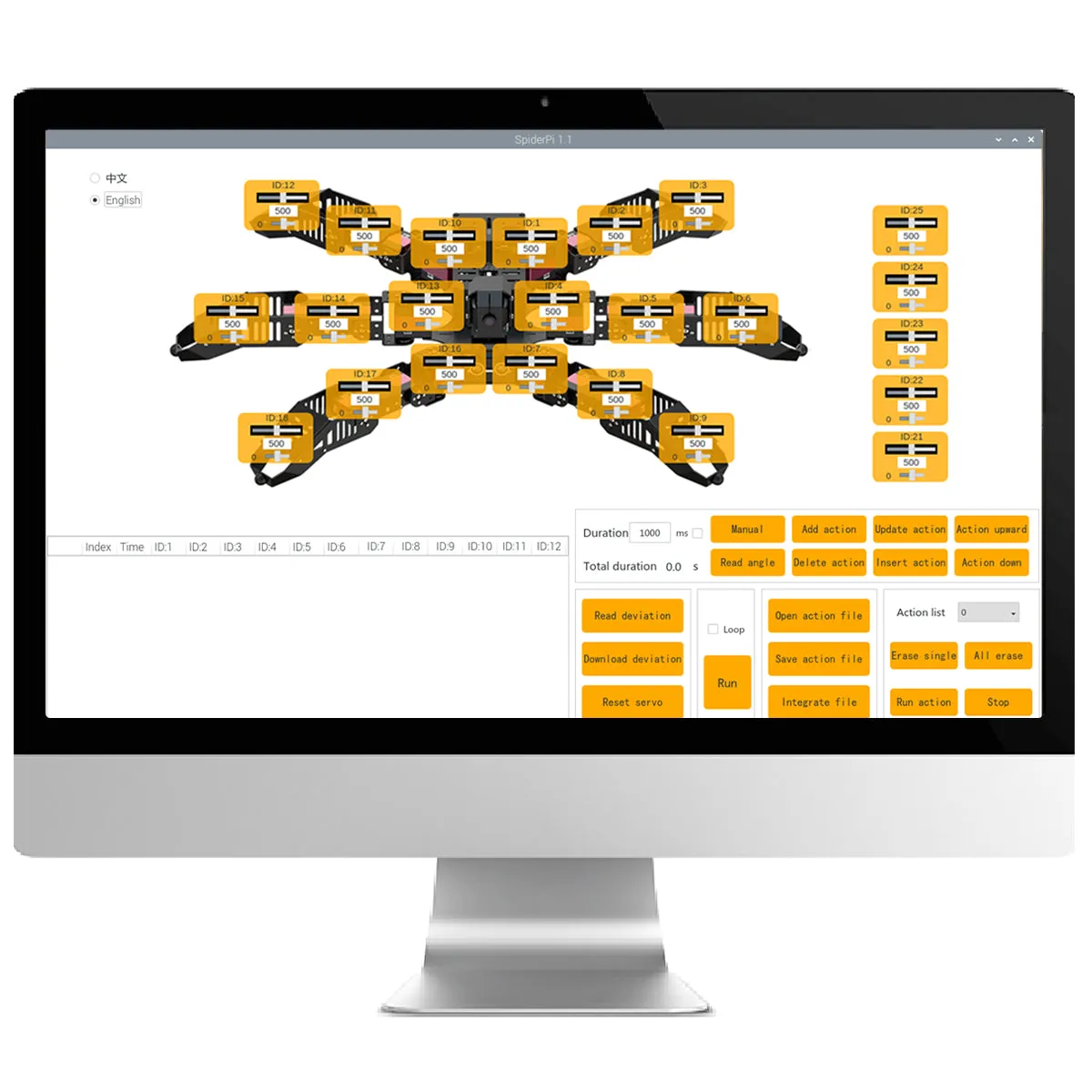

PC Software Control
With the graphical PC software, you can control the rotation of the robot servo by dragging the slider without code, and can edit the robot action group.
IMU Sensor
The core controller of the robot is equipped with IMU sensors, which can sense the robot's body attitude in real time and detect the direction of travel.
HTS-20H Servo Parameters
LX-224HV Servo Parameters
Specification Parameters
| Weight: | About 3.1kg |
| Material: | Metal and fiberglass panels |
| Camera pixel: | 480P |
| Ultrasonic ranging distance: | 2~400cm |
| Robotic arm DOF: | 5DOF |
| Battery: | 11.1V 3500mAh 10C lipo battery |
| Working hour: | 40min(continuous working) |
| Leg | 3DOF (each leg) x6 |
| Hardware: | Raspberry Pi 4B/5 and Raspberry Pi 4B/5 expansion board |
| Software: | APP PC software |
| Communication: | WiFi, Ethernet |
| Servo: | LX-224HV, HTS-20H |
| Package size: | 40*40*17cm |
| Package weight: | About 4.8kg |
Product Parameters

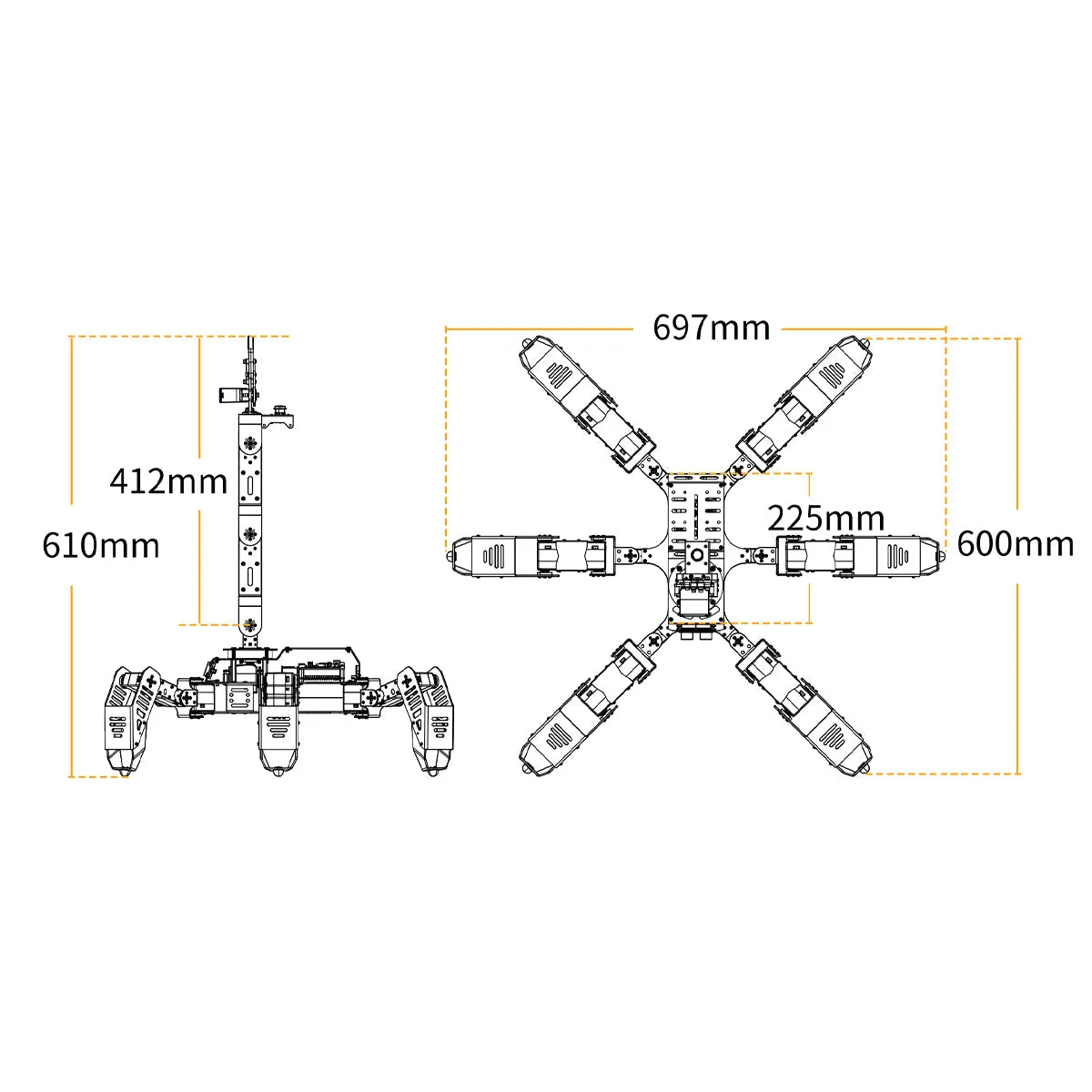

Dimensional Diagram
HD Wide Angle Camera
Course Materials

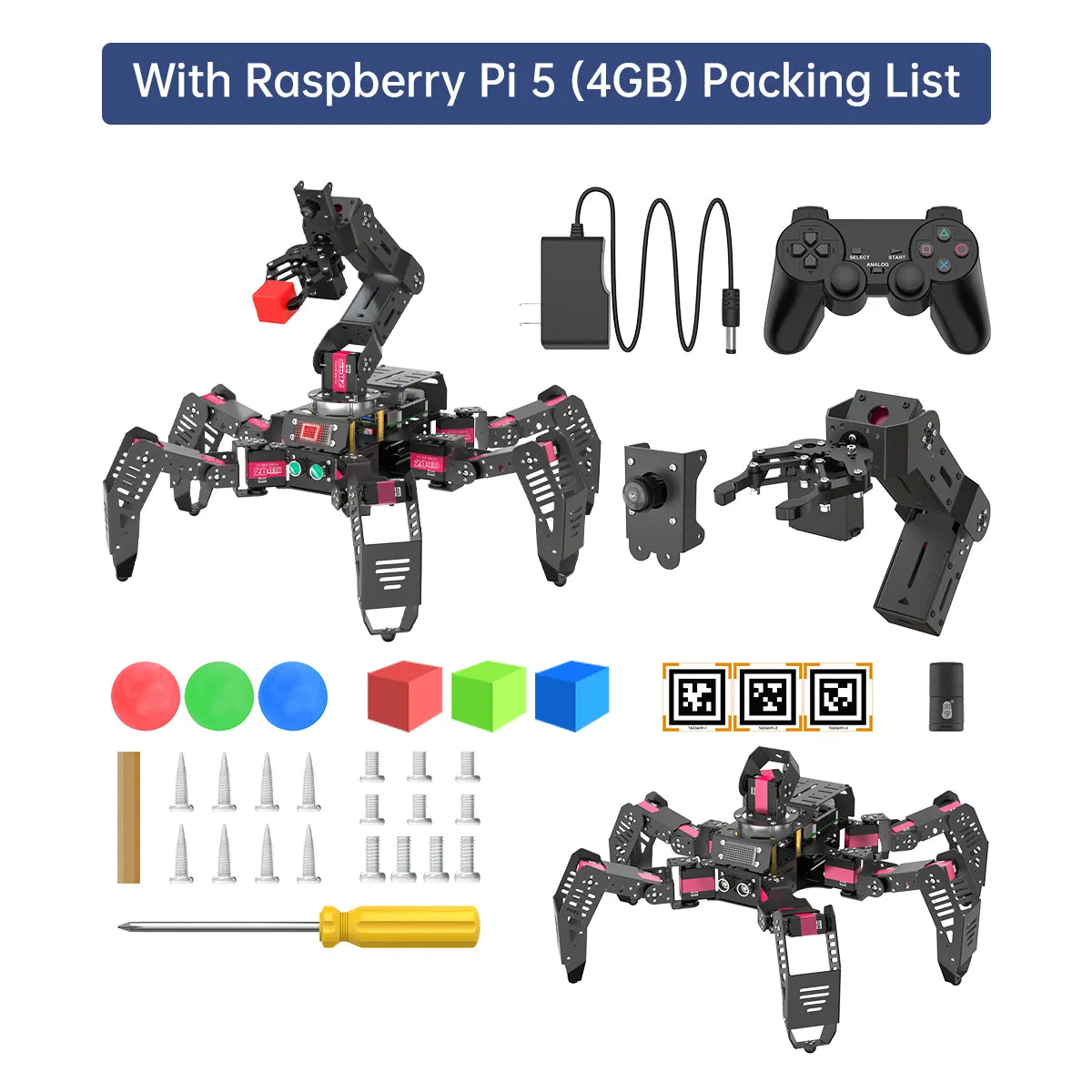

SpiderPi Pro Packing List
Specifications
| Item | Specification |
| Body weight | About 3.1kg |
| Material | Metal and fiberglass board |
| Camera resolution | 480P |
| Ultrasonic ranging distance | 2-400cm |
| Robotic arm DOF | 5DOF |
| Battery | 11.1V 3500mAh 10C Lipo battery |
| Battery life | 40min(continuous working) |
| Leg | 3DOF (each leg) x6 |
| Hardware | Raspberry Pi 4B/5 and Raspberry Pi 4B/5 expansion board |
| Software | Mobile APP PC software PC control software |
| Communication | Wi-Fi/ Ethernet |
| Servo | LX-224HV, HTS-20H |
| Control method | PC/ APP/ handle control |
| Package size | 40*40*17cm (length*width*height) |
| Package weight | About 4.8kg |
